The installation process of Abaqus now includes the other SIMULIA products which includes fe-safe, TOSCA & iSight. The following steps will guide through the general process of installing Abaqus 2023 on a Windows system. The standard Abaqus license is networked but this tutorial assumes the license server is installed on the same machine as Abaqus. The general process of installing Abaqus is divided into three parts:

• Download the files in the Sharepoint folder provided to you in the email you received.

• Install the license manager (FlexNet or DSLS)

• Install the software services (Abaqus, CAE, iSight, TOSCA and fe-safe)

Download the SIMULIA Extended Media Files

These instructions begin having downloaded the individual packages from the email sent to you by Dassault Systemes with the subject beginning with Media Order – XXXX. The link in the email will direct you to the 3ds.com website and you will need to login with your Passport account.

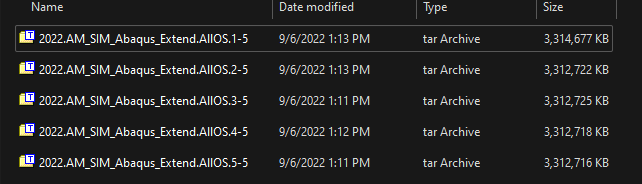

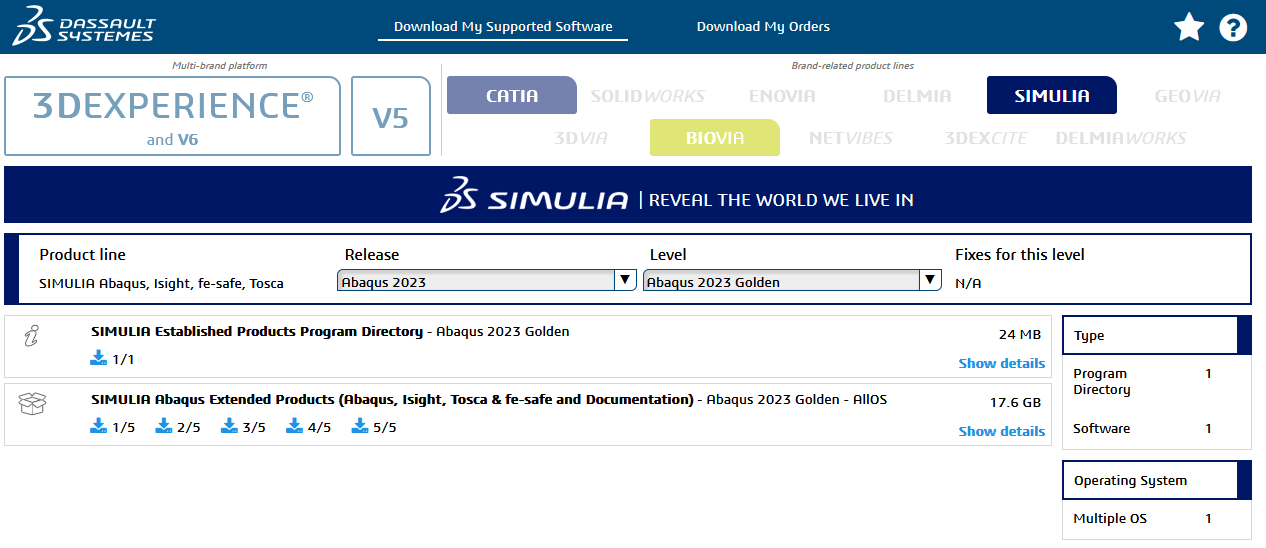

Alternatively, you can log into software.3ds.com and download your media order. For Abaqus 2023, you should see the following files once downloaded to your local hard drive:

• 2023.AM_SIM_Abaqus_Extend.AllOS.1-5.tar

• 2023.AM_SIM_Abaqus_Extend.AllOS.2-5.tar

• 2023.AM_SIM_Abaqus_Extend.AllOS.3-5.tar

• 2023.AM_SIM_Abaqus_Extend.AllOS.4-5.tar

• 2023.AM_SIM_Abaqus_Extend.AllOS.5-5.tar

Unpack Installation Files

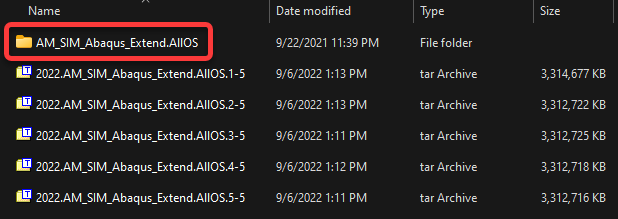

The installation media can be unpacked and extracted with a utility such as 7-zip utility. With the 7-zip utility installed, right-click on each tar file (the order does not matter) and choose the 7-Zip->Extract Here option. Repeat the step for the remaining tar files and you should see the top level directory:

Extracted File Structure

AM_SIM_Abaqus_Extend.AllOS

with sub-directories 1-5

With the software installations files unpacked and assembled in their respective directories, the installation process can now begin.

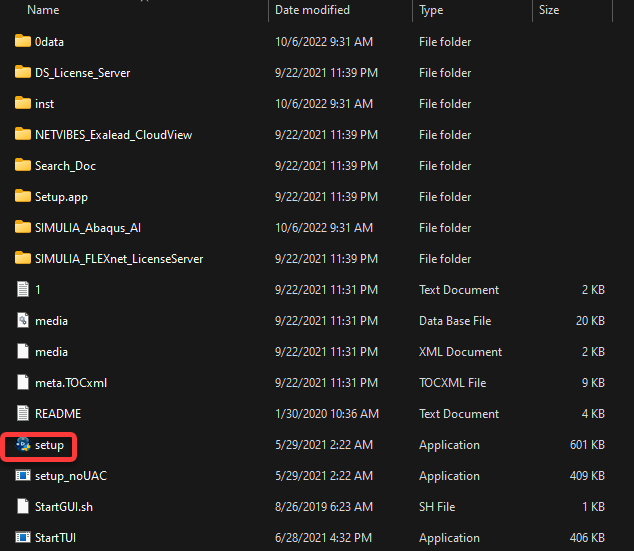

Execute setup.exe

Enter the AM_SIM_Abaqus_Extend.AllOS followed by the `1` folder. Then right click on setup.exe and Run as Administrator.

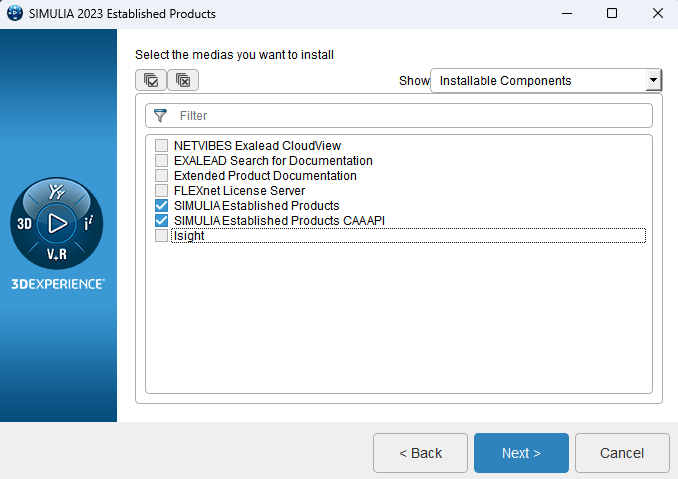

• Flexnet License Server (uncheck if using DSLS)

• SIMULIA Established Products

• SIMULIA Established Products CAAAPI

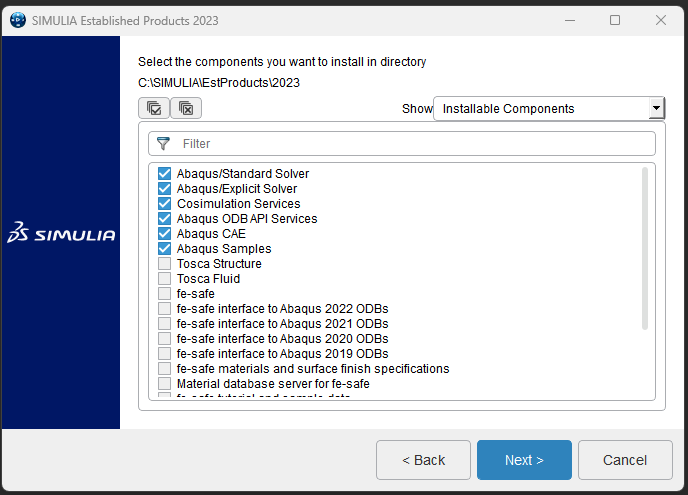

Select the top 6 items on the following list

• Abaqus/Standard Solver

• Abaqus/Explicit Solver

• Cosimulation services

• Abaqus ODB API Servies

• Abaques CAE

• Abaqus Samplers

Choose DSLS on the next screen

The remaining steps and menu options have been omitted as the default options are sufficient to complete a standard installation.

Congratulations and good luck on your journey to creating the future with ViAS3D and Dassault Systemes!

General Comments on Installing Abaqus

Things to keep in mind during the installation process:

• Important to right-click on setup.exe and run as administrator.

• Firewalls need to be trained and allow the various executables to run.

• If the installation media is on a network drive, it’s recommended to copy the media to the local computer.

• If the installation fails or is interrupted before completion, you may need to delete the SIMULIA folder before attempting the installation again. The installer will not do this automatically.
